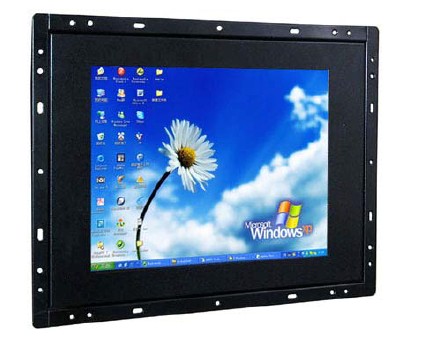

| 10.4" open frame industral touch lcd monitor |
|
| Clicks: Date:2012-12-17 |
| |
|
|
|
TFT Characteristics |
|
Display Type |
10.4" XGA TFT LCD
|
Resolution
|
1024 x 768
|
|
Pixel Pitch(RGB)
|
0.20625x 0.20625 mm
|
Contrast Ratio
|
500 : 1
|
|
Light Intensity |
400 cd/m2
|
Viewable Angles
|
70/70,60/60
|
|
Max Colors |
262K
|
Response Time
|
25 ms
|
|
MTBF |
50,000hrs.
|
Display Area(mm)
|
211.2x158.4 mm
|
|
Available Options
|
|
Touch Screen
|
Resistive type
|
|
Video input
|
AV input or VGA+DVI input
|
|
Power Specifications
|
|
Input
|
100~240VAC,50/60Hz
|
|
Output
|
DC12V@5A/60W,external AC adapter
|
|
Mechanical and Environmental
|
|
Construction
|
Heavy duty steel and aluminum front panel
|
|
Dimension (WxHxD)
|
260x190x40mm
|
|
Weight
|
|
|
Operating temperature
|
32 °F~113 °F (0 °C to 50 °C)
|
Storage temperature
|
-4 °F~140 °F (-20 °C to 60 °C)
|
|
Storage humidity
|
10% to 90%non-condensing
|
Vibration
|
17 to 500HZ 1G PTP
|
|
Anti-Shock
|
1G /peak( 11m sec)
|
|

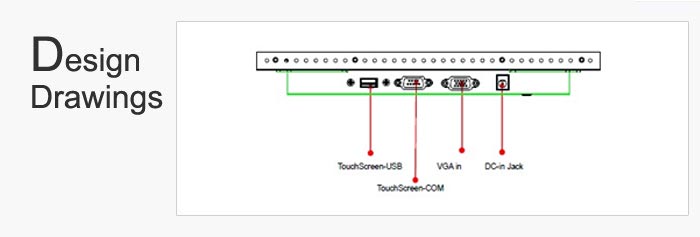

Input Signals
|
|
RGB Signal
|
D-SUB 15p Connector( Female)
|
|
DC input
|
DC jack (2.0mm)
|
|
Audio input
|
3.5” jack
|
|
Certification and Approvals
|
|
Certificate & Approvals |
CE/ RoHS |
|
|
Ordering Information
|
VGA+DVI input
|
|
OPD-10HO
|
10.4" Industrial Flat Panel Monitor with VGA input
|
|
OPD-10HO-TU
|
10.4" Industrial Flat Panel Monitor with VGA input ,with Touch screen and USB controller
|
|
OPD-10HO-TC
|
10.4" Industrial Flat Panel Monitor with VGA input ,with Touch screen and RS232 controller
|
|
AV input
|
|
OPD-10AHO
|
10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input
|
|
OPD-10AHO-TU
|
10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input, with Touch screen and USB controller
|
|
OPD-10AHO-TC
|
10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input, with Touch screen and RS232 controller
|
|
DC-DC power
|
DC8~30V input power module
|
|
| |
