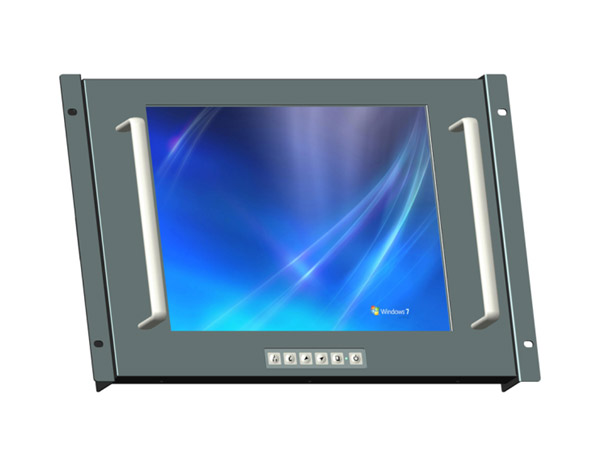

15" 7U Rack Mount display Monitor RCM-15
  • Compact 15” rack mount display monitor with 7U height
  • 15” XGA TFT LCD Panel support 1024×768 pixels
  • 90°tilt adjustment while mounted in rack: +45 °~ -45°
  • Input signal : VGA + DVI + AUDIO
  • 250 cd/m2 brightness
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
Home
|
Favorites

Related content
RCM-19
RCM-17
15 inch rackmount industrial lcd monitor




Home > products > industrial touchscreen monitor > Rackmount LCD monitor
15 inch rackmount industrial lcd monitor

Clicks:  Date:2013-01-06

15 inch rackmount industrial lcd monitor15 inch rackmount industrial lcd monitor
  • 15 inch rackmount industrial lcd monitor
  • 15 inch rackmount industrial lcd monitor

Specifications


TFT characteristics
Display Type :              15" XGA TFT LCD
Resolution :                 1024 × 768
Max.color :                  16.2M
Luminance :                250 cd/m2
View Angle :               178°(H) , 160°(V)
Pixel Pitch :                 0.297 x 0.297 mm
Contrast Ratio :           1000 : 1
Response Time :         8 ms
LCD MTBF :                 50,000hrs

Available Options
Touch Screen:      Resistive Type with USB/ RS232 controller
DC Power Input:   Wide Range 8~30V DC input

Power Specifications
Input:   100~240VAC,50/60Hz Output: DC12V@ 5A / 60W ,external ac adapter



Mechanical and Environmental
Construction:                       Heavy duty steel chassis
Dimensions (WxHxD):           482.6 x 310.3 x 48 mm
Net weight: 6.0KG                Gross weight:  9.0KG
Operating temperature :       0 °C to 50 °C
Storage temperature :          -20 °C to 60 °C
Storage humidity:                 10% to 90% non-condensing
Anti-Vibration:                      17HZ-500 HZ 1G PTP
Anti-Shock:                          1G / peak( 11m sec)

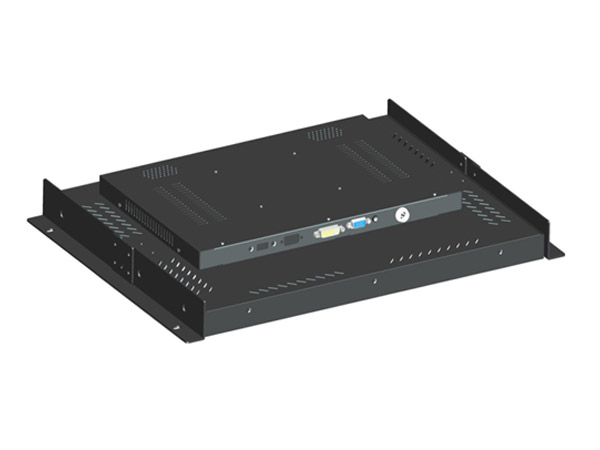

Input Signals
RGB Signal:              D-SUB 15P Connector (female)
DC input:                 Aviation 2pin Plug
DVI-D Signal:            DVI-D input 24pin connector (female)
Touchscreen RS232:   D-SUB 9p connector (female)
Touchscreen USB :     USB-A type connector (female)

Certification and Approvals
·CE/FCC/ROHS



Ordering Information
VGA + DVI input
RCM-15:             15”Rack Mount display Monitor with VGA + DVI + Audio input
RCM-15T/C:        15”Rack Mount display Monitor with VGA + DVI + Audio input, with touch screen and RS232 controller
RCM-15T/U:        15”Rack Mount display Monitor with VGA + DVI + Audio input, with touch screen and USB controller
