TFT characteristics |

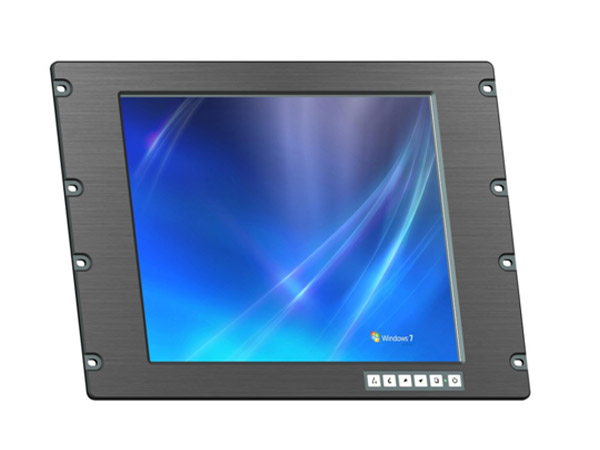

Display Type : 19" SXGA TFT LCD
Resolution : 1280 × 1024
Max.color : 16.7M
Luminance : 300 cd/m2
View Angle : 160°(H) , 160°(V)
Pixel Pitch : 0.294 x 0.294 mm
Contrast Ratio : 1000 : 1
Response Time : 5 ms
LCD MTBF : 50,000hrs |
|
Available Options |
Touch Screen: Resistive with USB and RS232 controller
DC Power Input: Wide Range 8~30v DC input |
|
Power Specifications |
|
Input: 100~240VAC,50/60Hz
Output: DC12V@ 5A / 60W ,external ac adapter
|
|
|
Mechanical and Environmental |
Construction : Heavy duty steel and aluminum front panel
Dimensions (WxHxD): 482.6 x 375 x 47 mm
Net Weight: 9.0KG Gross Weight:11.5 KG
Operating temperature: 0 °C to 50 °C
Storage temperature: -20 °C to 60 °C
Storage humidity: 10% to 90% non-condensing
Anti-Vibration: 17HZ-500 HZ 1G PTP
Anti-Shock: 1G / peak( 11m sec) |
|
Input Signals |
RGB Signal: D-SUB 15P Connector (female)
DC input: Aviation 2pin Plug
DVI-D Signal: DVI-D input 24pin connector (female)
Touchscreen RS232 : D-SUB 9p connector (female)
Touchscreen USB : USB-A type connector (female) |
|
Certification and Approvals |
|
CE/FCC/ROHS |
|
