| 19"panel pc |
|
| Clicks: Date:2013-09-27 |
| |
|
|
Feature:
-
◆Intel Core i7/i5/i3 Sandy bridge Processor
-
◆System memory 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz
-
◆Front 6mm aluminum bezel with IP65 compliant
-
◆4COM (1* RS485), 1*DVI, 1* PS/2, 1*VGA, 6*USB, 2*LAN, 1x*Audio,1*MIC
-
◆1*PCI Expressx16 slot,1xMini PCIe slot
-
◆Back for Power LED and HDD LED INDICATION AND 2x3Watts stereo speaker
-
◆Wireless Lan with antenna (opion)
-
◆Panel(Flush) mount with clip
-
◆Standard VESA 75/100mm support stand ,wall mount and swing arm
Specifications
|
System
|
CPU
|
Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
|
|
Chipset
|
Intel H61
|
|
Memory
|
1x DIMM DDR3 800/1066/1333 SDRAM up to 8 GB
|
|
HDD
|
Space for 1x 2.5" 320G SATA HDD
|
|
Ethernet
|
Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
|
|
Audio
|
Realtek ® ALC662, 5.1 channel surround audio
|
|
Mounting
|
Panel / VESA 75 X 75mm and 100 x 100mm
|
|
Construction
|
Aluminum front bezel and Aluminum chassis
|
|

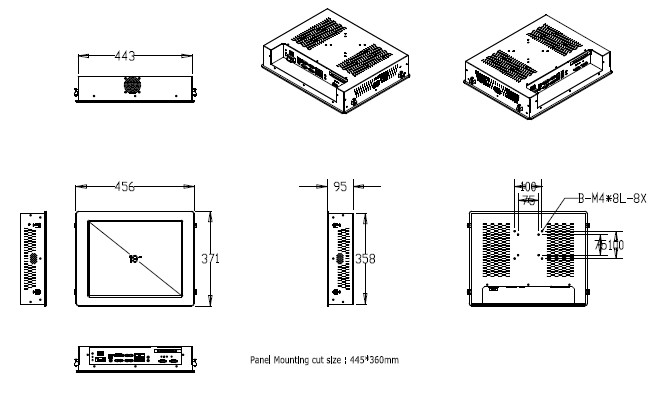

DimensionWxHxD ( mm )
|
456 x 371 x 95mm
|
|
NET Weight ( kgs )
|
11 KG
|
|
OS support
|
Support DOS, Windows, Netware, Unix, Linux,
|
|

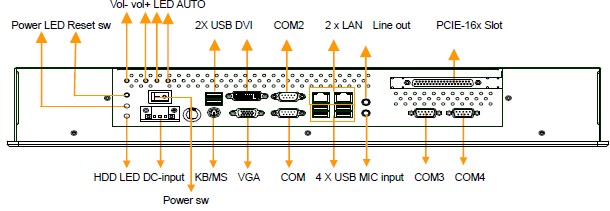

I/O Ports
|
Serial ports
|
3 x RS-232,1 x RS422/485
|
|
DVI ports
|
1 x DVI-D port
|
|
Keyboard and Mouse ports
|
PS/2
|
|
VGA
|
DB-15 Connector
|
|
Sound
|
Mic-in / Line-out
|
|
Ethernet
|
2 x 10/100/1000MLAN port ( RJ-45 )
|
|
USB port
|
6 x USB2.0
|
|
DC input Connector
|
3Pin DC power input terminal block
|
|
Environmental
Specifications
|
Operating Temperature
|
0 °C to 50°C (32 °F~125 °F)
|
|
Storage temperature
|
-20 °C to 60 °C (-4 °F~140 °F)
|
|
Relative Humidity
|
10% to 90% non-condensing
|
|
Shock (operating)
|
1G /peak ( 11m sec)
|
|
Vibration
|
17 to 500HZ 1G PTP
|
|
Front panel protection
|
IP65/NEMA 4 compliant
|
|
LCD Display
|
Display Type
|
19" LED panel
|
|
Screenresolution (Pixels)
|
1280 * 1024
|
|
Brightness
|
250cd/m2
|
|
Viewing angle
|
170°(H) , 160°(V)
|
|
Touch screen
|
Internal USB interface controller
|
|
Resolution: continuous
|
|
Light transmission: 80% or more
Surface hardness : 3H
|
|
Operating force : ≤100g
|
|
Life expectancy : 35 Million
|
|
Support DOS, Windows, Netware, Unix, Linux,
|
|
Power Supply
|
Output Rating 94W
|
|
Input Voltage : 8~30v, *External AC adapter*
|
Ordering Information
IPC-I5619M-2R |
19" SXGA High Performance industrial panel pc w/o i3/i5/i7 Processor, with 2G RAM, 2.5" 320G HDD/16G SSD, with resistive Touch screen, with 19V/150W external AC adapter
4COM (1* RS485), 1*DVI, 1* PS/2, 1*VGA, 6*USB, 2*LAN, 1x*Audio,1*MIC,1xPCI Express x16 Slot, 1 xMini PCIe slot
|
|
MP-MS150NW
|
Mini-PCIE wireless Lan card with antenna
|
Optional:
|
Storage |
16G SSD/32G SSD/64G SSD
|
|
RAM
|
4G/8G
|
|
Wireless LAN
|
Wifi
|
|
Power supply
|
DC8-30V
|
|
Speakers
|
2*3watts stereo speaker
|
|
| |
|
 |
| |
|
