Model NO: IPPC-170J-2R
Features
1. 17" SXGA TFT LCD Panel support 1280 × 1024pixel
2. Intel Celeron J1900 ( Four-core 2.0GHz processor ) CPU with 1333 MHz FSB
3. Front 6mm aluminum bezel with IP65 compliant
4. Front hardness glass protect screen ( touch option )
5. 6COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO、MIC
6. 1xPCI Slot, 1 xMini PCIe slot
7.Back For Power LED and HDD LED Indication
8. Wireless LAN with antenna (option)
9. Panel ( Flush ) mount with clip
10. DC12V input ( option Wide range DC 8-30V input)
11. Standard VESA 75/100mm support stand ,wall mount and swing arm

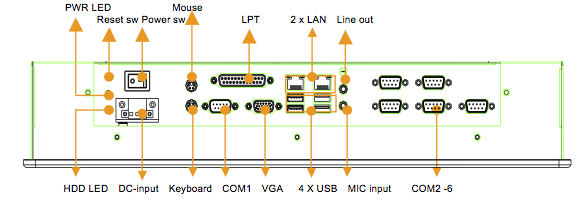

I/O Appearance
Various applications
1. Control or data entry operator interfaces
2. Information management and retrievals
3. Entertainment management systems
4. Point of sale (POS) terminals
5. Banking /office automation
Specifications
|
System
|
CPU
|
Intel Celeron J1900 (Four-core 2.0GHz processor) CPU with 1333 MHz FSB
|
|
Chipset
|
Intel Bay trail SOC
|
|
Memory
|
1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB
|
|
HDD
|
Space for 1x 2.5" 500G SATA HDD
|
|
Ethernet
|
Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
|
|
Graphic
|
Intel HD chipset
|
|
Audio
|
Realtek ® ALC662, 5.1 channel surround audio
|
|
Mounting
|
Panel / VESA 75 X 75mm and 100 x 100mm
|
|
Construction
|
Aluminum front bezel and Aluminum chassis
|
|
DimensionWxHxD ( mm )
|
432 x 346 x 79mm
|
|
NET Weight ( kgs )
|
7.5 KG
|
|
OS support
|
Support DOS, Windows, Netware, Unix, Linux,
|
|
I/O Ports
|
Serial ports
|
5 x RS-232,1 x RS422/485
|
|
Parallel ports
|
1 x SPP/EPP/ECP port
|
|
Keyboard and Mouse ports
|
PS/2
|
|
VGA
|
DB-15 Connector
|
|
Sound
|
Mic-in / Line-out
|
|
Ethernet
|
2 x 10/100/1000MLAN port ( RJ-45 )
|
|
USB port
|
4 x USB2.0
|
|
DC input Connector
|
3Pin DC power input terminal block
|
|
Environmental
Specifications
|
Operating Temperature
|
0 °C to 45°C (32 °F~113 °F)
|
|
Storage temperature
|
-20 °C to 60 °C (-4 °F~140 °F)
|
|
Relative Humidity
|
10% to 90% non-condensing
|
|
Shock (operating)
|
1G /peak ( 11m sec)
|
|
Vibration
|
17 to 500HZ 1G PTP
|
|
Front panel protection
|
IP65/NEMA 4 compliant
|
|
LCD Display
|
Display Type
|
17” SXGA TFT LCD
|
|
Screenresolution (Pixels)
|
1280 * 1024
|
|
Brightness
|
300cd/m2
|
|
Contrast Ratio
|
1000:1
|
|
Response Time
|
8
|
|
Viewing angle
|
170°(H) , 160°(V)
|
|
Operation Lifetime
|
30.000 Hrs
|
|
Touch screen
|
Internal USB interface controller
|
|
Resolution: continuous
|
|
Light transmission: 80% or more
Surface hardness : 3H
|
|
Operating force : ≤100g
|
|
Life expectancy : 35 Million
|
|
Support DOS, Windows, Netware, Unix, Linux,
|
|
Power Supply
|
Output Rating 40W
|
|
Input Voltage : DC12V,
|
Ordering information
|
IPPC-170J-2R
|
17” SXGA Industrial Panel PC support Intel® Celeron Four-core 2.0GHz Processor, with 4G RAM, 2.5” 500G HDD, with Resistive Touch Screen, DC12V input External AC adapter
|
|
MP-MS150NW
|
Mini-PCIE wireless Lan card with antenna
|

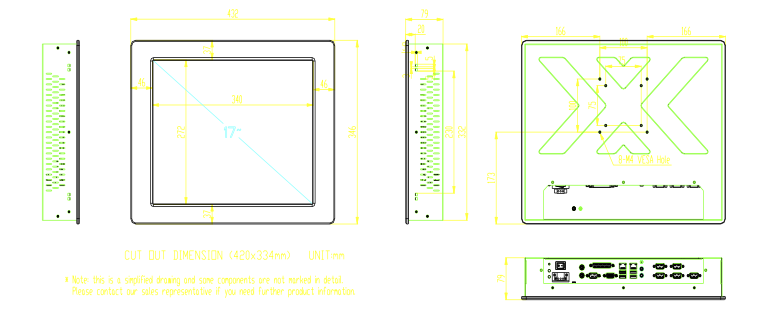

Dimension Diagram
