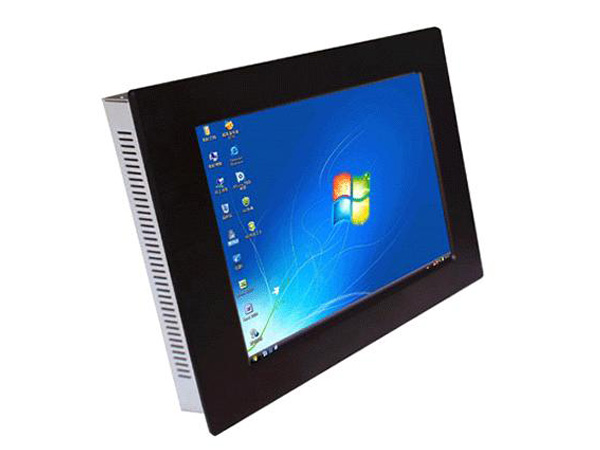

22" Wide LCD Multitouch Industrial Panel PC

. 22" WSXGA TFT LCD Panel support 1680 × 1050pixels
. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
. Front 6mm aluminum bezel with IP65 compliant
. Front IR Multitouch screen
. Wireless LAN with antenna (option)
. Panel ( Flush ) mount with clips
. Wide range DC 8-30V optional
. Standard VESA 75mm support stand ,wall mount and swing arm

Related content


Home > products > industrial panel PC > multitouch industrial panel pc

Clicks:  Date:2013-02-28
  • IPC-D5222
  • IPC-D5222
  • IPC-D5222
  • IPC-D5222
TFT Characteristics
Display Type


Pixel Number 1680 x 1050
Pixel Pitch(RGB) 0.282*0.282 Contrast Ratio 1000: 1
Light Intensity

250 cd/m2

Viewable Angles 160°(H) , 160°(V)
Max Colors 16.7MB Response Time  5 ms
MTBF 50,000hrs.
System Characteristics
Processor Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB Chipset Intel NM10
Memory 1 x SODIMM DDR3 800/1066/1333 SDRAM up to 4GB. Graphic Intel GMA3150chipset
Storage Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot Audio Realtek ALC662,5.1 Channel surround Audio
USB Port 4 x USB2.0 Ethernet 10/100/1000M Ethernet
VGA Port 1 x VGA Connector Speakers Optional
Serial Port 4 x COM ( 3 x RS232,1 x RS232/422/485) Expansive Slot 1 x PCI, 1 x Mini PCIe
KB & Mouse 1 x PS2 port Watchdog Timer 255Levels,1-255sec.
Available Options
Touch Screen IR Multitouch screen Wireless LAN Meet IEEE802.11b/gstandard.
DC Power Input  DC 8 -30V Speakers 2
I/O Connector
PS/2 1 x PS2 for KB/ Mouse Lan 2 x 10/100/1000M Lan port(RJ-45) )
VGA 1 x VGA USB 4 x USB2.0
RS-232 4 x COM( 3 x RS232,1 x RS422/485) Power Switch 1 x Power Switch,1xReset switch
DC Input 1 x Lockable DC Input connector Audio 1 x Lin-out / Mic-in
Mechanical and Environmental
Construction Heavy duty steel chassis enclosure Storage humidity 10% to 90% non-condensing
Operating temperature 32°F~125°F(0°C to 50°C) Anti-Vibration 17 to 500Hz 1G PTP
Storage temperature -4°F~140°F(-20°C to 60°C) Dimensions(WxHxD 375 x 300 x 66mm
Anti-Shock 1g/peak(11ms) Weight Net:10KG ,Volume Gross:13KG
Power Specification
Output DC19V@ 8A / 96W, external AC Power Adapter Input 100~240VAC,50/60Hz
Certification CE/FCC/ROHS


Ordering Information

IPC-D5222TIR2: 22" XGA Slim Line Mount Panel PC,support Intel Atom D525 Dual-core 1.8GHz Processor, with 22” IR Multi touchscreen, 320G HDD,2G DDR3 RAM, DC19V power supply

MP-MS150NW: Mini-PCIE wireless Lan Card with antenna

Storage 16G SSD/32G SSD/8G CF card
Wireless LAN Wifi
Power supply DC8-30V
Speakers 2
