System Characteristics |
Processor: Intel ATOM D525 dual-core 1.8GHz Processor Front Side Bus 800MHz
Chipset: Intel NM10chipset, Build-in INTEL GMA3150 Graphics Core
Memory: 1 x SO-DIMM DDR3 800MHz Slot, Max to 4GB
Storage: 1x 2.5" SATA HDD, anti-vibration
Graphic: Intel GMA3150 Graphics Core
Ethernet: 1x 10/100Mbps
VGA: 1 x VGA connector
Parallel: 1 x LPT connector
K/B & Mouse: 1 x PS/2 Keyboard and 1 x PS/2 Mouse connector
Audio: Realtek ACL662 6-channel Audio codec integrated
USB: 6 x USB 2.0
Serial: 5 x COM Port ( 5 x RS232)
Expansion Slot: 1 x PCI , 2 x Mini PCI-E ( internal )
WLAN: IEEE 802.11b/g/n (option ) |
|
Mechanical Specification |
Construction : Heavy duty steel chassis
Mounting: Desktop / Wall mounting
Net Weight: 3.5 KG Gross Weight: 5.5 KG
Dimension: 234 x 200 x 64 mm (W x D x H) |
|
Power Specifications |
AC IN : 100- 240V, 50/60HZ
DC out: 12V/5A ,60Watts external AC Adapter |
|
|
I/O connector |
|

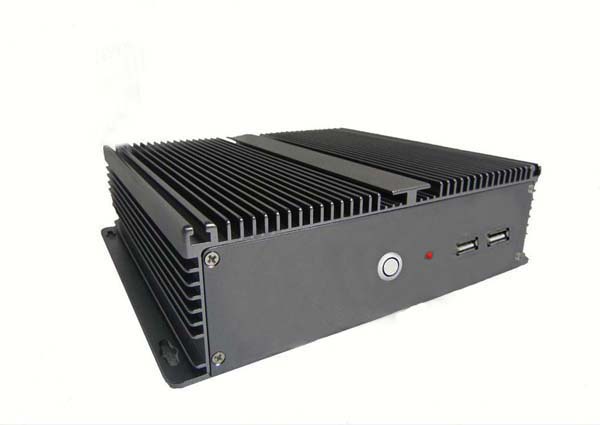

Front I/O Panel
1 x Power Switch Button
1 x HDD Active LED
1 x Power LED
2 x USB 2.0 , 1 x Reset Switch Button

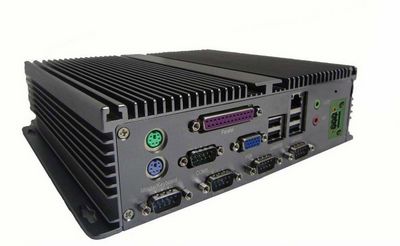

Rear I/O panel
1 x 10/100 LAN port ( RJ45 )
1 x VGA ,
1 x LPT
1 x PS2 Keyboard, 1 x PS2 mouse
1 x Reset Switch Button
4 x USB
5 x COM (5xRS232)
1 x Reset Switch
1 x 3pin Terminal
1x Line out / MIC in
|
|
Environmental Specification
|
Operation Temperature: 0 -50 C
Storage Temperature: -20 – 60 C
Humidity: 10%-90% non-condensing
Vibration : 1grms ( 5-500Hz / 3-axes )
Shock: 10g/ 11ms |
|
Certification |
|
CE/FCC/ROHS |
|
