Atom D525 Fanless Embedded Computer

Fanless design with compact size
Support Intel atom D525 dual-core 1.8GHz Processor
Intel D525 + Intel NM10 chipset, Build-in INTEL GMA 3150 Graphics Core
1 x SO-DIMM DDR3 800 Slot, Max to 2GB
1x 2.5-inch anti-vibration HDD
1x Mini PCI-E socket
4x COM (3 x RS232 COM port, 1 x RS422/485 COM Port)
Multiple I/O,USB2.0, LAN, COM, VGA, LPT, PS2 KB/MS, Mini PCI-E, Audio

Wide range DC 8-30V input option )
Home
|
 Favorites

Related content
BPC-D5205-FL
BPC-D5204-FL




Home > products > industrial embedded computer > Embedded Computer
BPC-D5204-FL
Clicks:  Date:2012-12-26

BPC-D5204-FLBPC-D5204-FLBPC-D5204-FL
  • BPC-D5204-FL
  • BPC-D5204-FL
  • BPC-D5204-FL

Specifications

System Characteristics
Processor:          Intel ATOM D525 dual-core 1.8GHz Processor Front Side Bus 800MHz
Chipset:             Intel NM10chipset, Build-in INTEL GMA3150 Graphics Core
Memory:            1 x SO-DIMM DDR3 800MHz Slot, Max to  4GB
Storage:            1x 2.5" SATA HDD, anti-vibration
Graphic:             Intel GMA3150 Graphics Core
Ethernet:           2x 10/100/1000Mbps
VGA:                 1 x VGA connector
Parallel:              1 x LPT connector
K/B & Mouse:     1 x PS/2 Keyboard and 1 x PS/2 Mouse connector
Audio:               Realtek ACL662 6-channel Audio codec integrated
USB:                 6 x USB 2.0
Serial:                4 x COM ( 3 x RS232, 1 x RS422/485)
Expansion Slot:   1 x PCI , 2 x Mini PCI-E ( internal )
WLAN:              IEEE 802.11b/g/n (option )

Mechanical Specification
Construction :                 Heavy duty steel chassis
Mounting:                       Desktop / Wall mounting
Net Weight: 3.5 KG         Gross Weight: 5.5 KG
Dimension:                     234 x 200x 64 mm (L x W x H)

Power Specifications
AC IN :            100- 240V, 50/60HZ
DC out:           12V/5A ,60Watts external AC Adapter
I/O connector

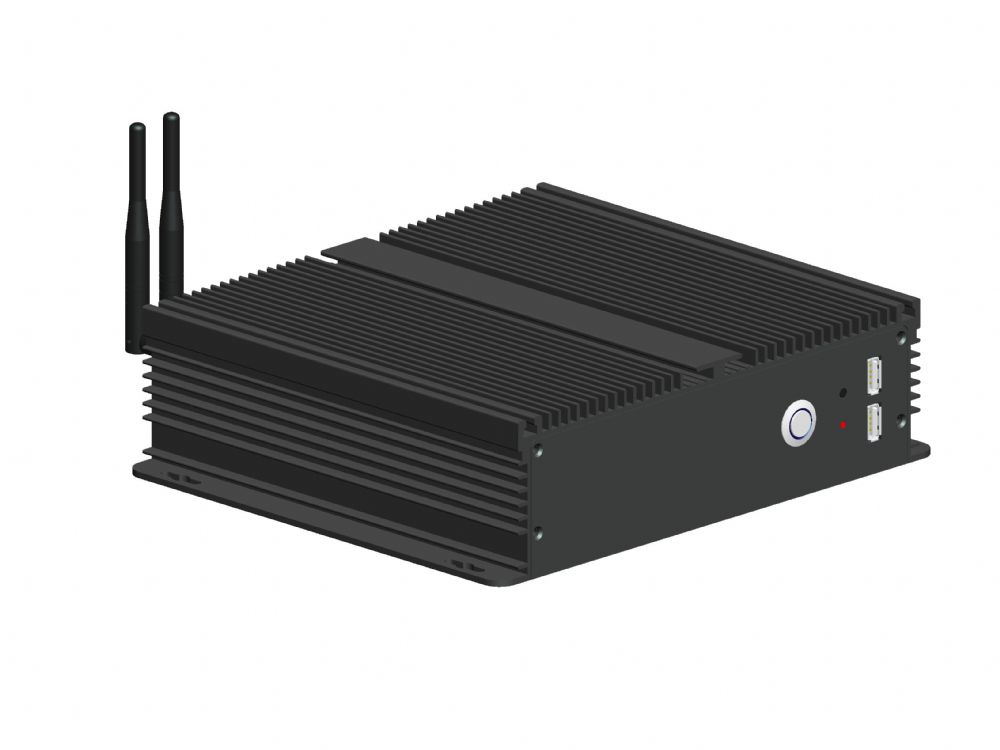

Front I/O Panel
1 x Power Switch Button
1 x HDD Active LED
1 x Power LED
2 x USB 2.0, 1 x Reset Switch

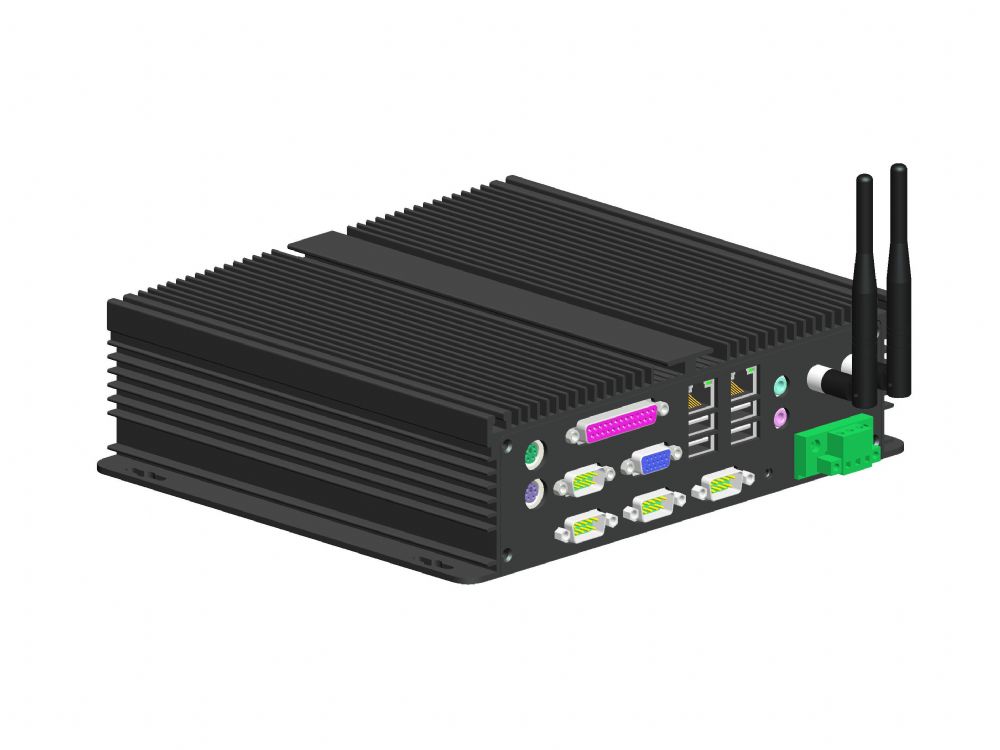

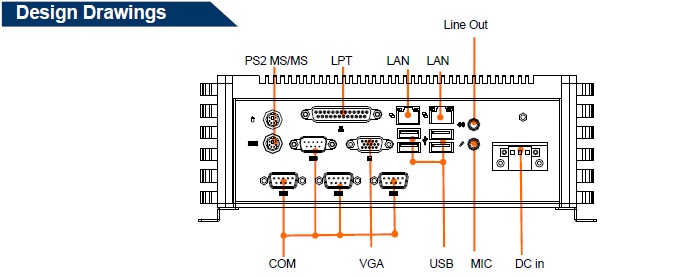

Rear I/O panel
2 x 10/100/1000 LAN port ( RJ45 )
1 x VGA ,
1 x LPT
1 x PS2 Keyboard, 1 x PS2 mouse
4 x USB
4 x COM Port (3 x RS232, 1 x RS422/485)
1 x 3pin Terminal
1x Line out / MIC in







Environmental Specification
Operation Temperature:        0 -50 C
Storage Temperature:           -20 – 60 C
Humidity:                             10%-90% non-condensing
Vibration :                            1grms ( 5-500Hz / 3-axes )
Shock:                                10g/ 11ms

Certification
CE/FCC/ROHS
Ordering Information

BPC-D5204-FL:     Embedded Box PC support Intel ATOM D525 dual-core 1.8 GHz Processor,320G HDD,2G DDR3 RAM, DC8-30V power supply .4 x COM Port (3 x RS232, 1 x RS422/485)

Optional:

AMPE-LW08A:      Mini PCI-E wireless LAN card with antenna
