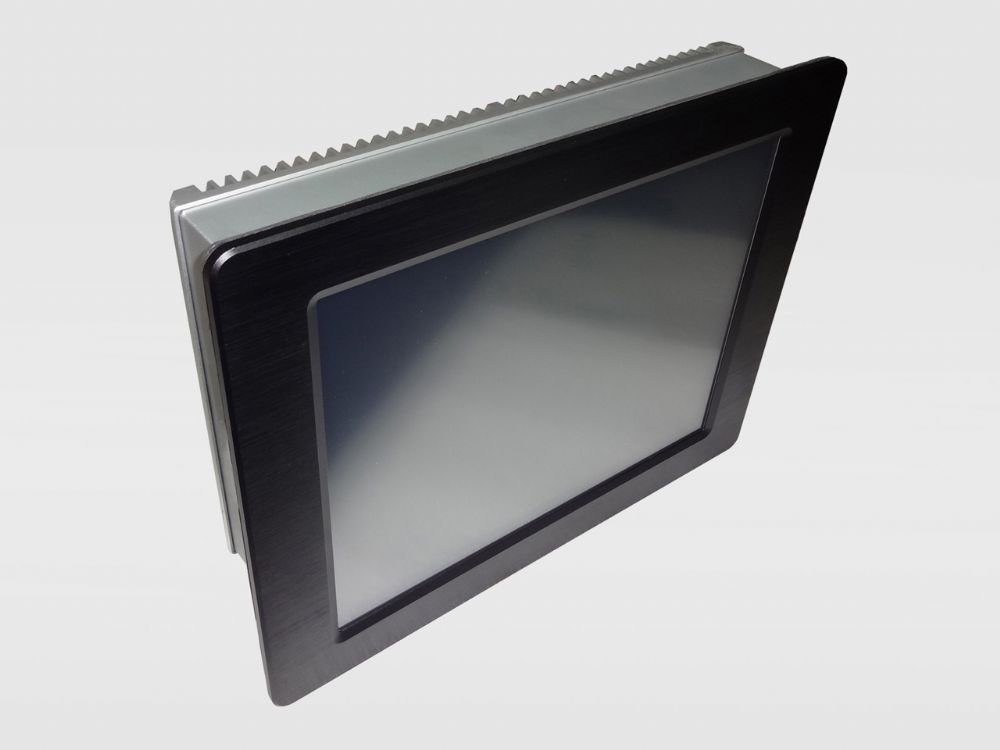

12.1" LED fanless industrial computer with intel® Atom N2800 (Dual-core 1.8G) Processor FIPC-N2812

Feature:
1. 12.1 LED panel , 1024*768 pixels
2. Front 6mm aluminum bazel with IP65 compliant
3. Front hardness glass protech screen
4. 4COM (1* RS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO

5. Wifi and DC8-30V(option)
6. Panel(Flush)mount with clips
7. Standard VESA 75/100mm support stand,wall mount and swing arm

Home
|
Favorites

Related content
8.4"fanless panel pc
10.4"fanless panel pc
12.1" fanless panel pc
15"fanless panel pc
17"fanless panel pc
18.5" fanless panel pc
19"fanless panel pc
22"fanless panel pc




Home > products > industrial panel PC > intel N2800 fanless panel pc
12.1" fanless panel pc

Clicks:  Date:2013-09-28

12.112.112.112.1
  • 12.1
  • 12.1
  • 12.1
  • 12.1
TFT Characteristics
Display Type 12.1" LED panel Pixel Number 1024 * 768
Pixel Pitch(RGB) 0.297*0.297 Contrast Ratio 700: 1
Light Intensity 500 cd/m2 Viewable Angles 160°(H) , 160°(V)
MTBF 50,000hrs. Response Time 5 ms
OS sytem Support DOS,Windows,Netware,Unix,Linux
Touch screen
Internal USB interface controller Resolution: continuous
Light transmission: 80% or more Surface hardness : 3H
Operating force : ≤ Life expectancy : 35 Million
Support DOS, Windows, Netware, Unix, Linux,
System Characteristics
Processor Intel Atom D ( Dual-core 1.86GHz processor ) CPU with 667 MHz FSB Chipset Intel Atom N2800 + NM10
Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB Graphic Intel GMA3650 chipset
HDD Space for 1x 2.5" Audio Realtek ® ALC662, 5.1 channel surround audio
Ethernet Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet Mounting Panel / VESA 75 X
Contruction Aluminum front bazel and aluminum chassis
Available Options
Touch Screen Resistive,intel USB interface controller Wireless LAN/Wifi Meet IEEE802.11b/g standard.
DC Power Input standard DC19V(DC8-30V option) Speakers 2 * 2W

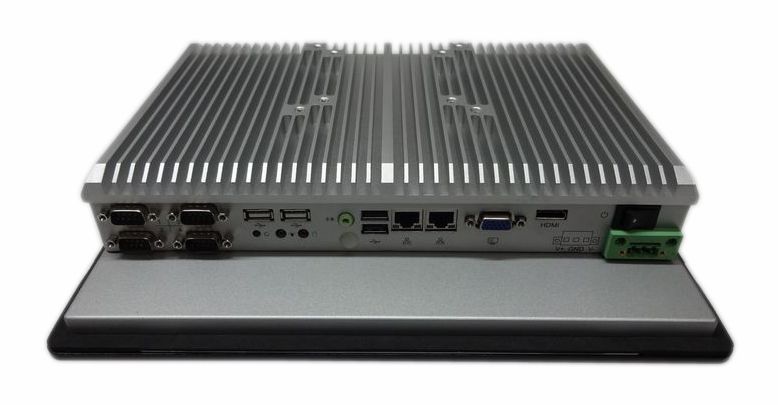

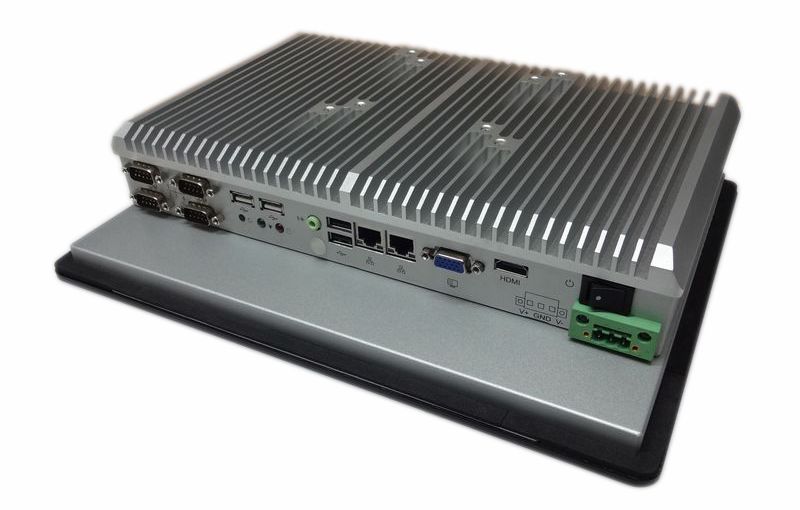

I/O Connector
RS-232 4 * COM( 3 * RS232, 1 * RS422/485) Lan 2 *10/100/1000 MLan port(RJ-45)
VGA DB-15 connector USB 4 * USB 2.0
HDMI ports 1 * HDMI Sound Mic-in / Line-out
Audio 1 * Audio Expansive Slot 2*Mini PCIe slot
DC Input 3Pin DC power input termnal block
Mechanical and Environmental
Operating temp 32°F~125°F ( 0 °C to 50 °C) Storage temp. -4°F~140°F ( -20 °C to 60 °C)
Storagehumidity 10% to 90%non-condensing Shock(operating) 1G/peak (11m sec)
Vibration 17 to 500Hz 1G PTP Front panel protection IP65/NEMA 4 compliant
Dimension (WxHxD)   Weight
Power Specification
Output rating 32W Input Voltage 8-30V, "external AC adapter"

Ordering Information

FIPC-N2812 : 12.1" WXGA fanless Industrial Panel PC support Intel® Atom N2800 Dual‐core 1.86GHz Processor, with 2G RAM, 2.5" 320G HDD, with Resistive Touch Screen,DC12V power adapter


IO: 4COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO, 2 x Mini PCIe slot

Optional:
Storage 16G SSD/32G SSD/64G SSD
RAM 4G
Wireless LAN Wifi
Power supply DC8-30V
Speakers 2 x 2W
