TFT Characteristics |
|
Display Type |
18.5 LED panel
|
Pixel Number |
1366 * 768
|
|
Pixel Pitch(RGB) |
0.297*0.297 |
Contrast Ratio |
700: 1 |
|
Light Intensity |
250 cd/m2 |
Viewable Angles |
160°(H) , 160°(V) |
|
MTBF |
50,000hrs. |
Response Time |
5 ms |
|
OS sytem |
Support DOS,Windows,Netware,Unix,Linux |
|
Touch screen |
|
Internal USB interface controller |
Resolution: continuous |
|
Light transmission: 80% or more |
Surface hardness : 3H |
|
Operating force : ≤ |
Life expectancy : 35 Million |
|
Support DOS, Windows, Netware, Unix, Linux, |
|
System Characteristics |
|
Processor |
Intel Atom D ( Dual-core 1.86GHz processor ) CPU with 667 MHz FSB |
Chipset |
Intel Atom N2800 + NM10 |
|
Memory |
1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB |
Graphic |
Intel GMA3650 chipset |
|
HDD |
Space for 1x 2.5" |
Audio |
Realtek ® ALC662, 5.1 channel surround audio |
|
Ethernet |
Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet |
Mounting |
Panel / VESA 75 X |
|
Contruction |
Aluminum front bazel and aluminum chassis |
|
Available Options |
|
Touch Screen |
Resistive,intel USB interface controller |
Wireless LAN/Wifi |
Meet IEEE802.11b/g standard. |
|
DC Power Input |
standard DC19V(DC8-30V option) |
Speakers |
2 * 2W |
|

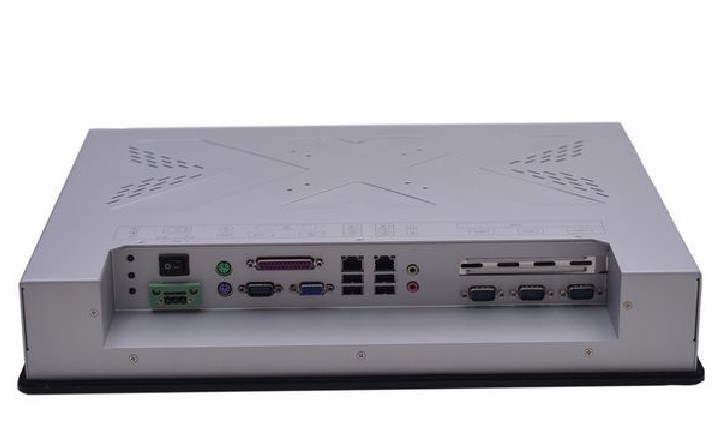

I/O Connector |
|
RS-232 |
4 * COM( 3 * RS232, 1 * RS422/485) |
Lan |
2 *10/100/1000 MLan port(RJ-45) |
|
VGA |
DB-15 connector |
USB |
4 * USB 2.0 |
|
HDMI ports |
1 * HDMI |
Sound |
Mic-in / Line-out |
|
Audio |
1 * Audio |
Expansive Slot |
2*Mini PCIe slot |
|
DC Input |
3Pin DC power input termnal block |
|
Mechanical and Environmental |
|
Operating temp |
32°F~125°F ( 0 °C to 50 °C) |
Storage temp. |
-4°F~140°F ( -20 °C to 60 °C) |
|
Storagehumidity |
10% to 90%non-condensing |
Shock(operating) |
1G/peak (11m sec) |
|
Vibration |
17 to 500Hz 1G PTP |
Front panel protection |
IP65/NEMA 4 compliant |
|
Dimension (WxHxD) |
|
Weight |
|
|
Power Specification |
|
Output rating |
32W |
Input Voltage |
8-30V, "external AC adapter" |
