| 22" panel pc |
|
| Clicks: Date:2013-09-27 |
| |
Model NO: IPPC-220W-2R
Features
-
22" WXGA LED Panel support 1680 × 1050
-
Front 6mm aluminum bezel with IP65 compliant
-
Front hardness glass protect screen
-
4COM (1*RS485), 1*LPT, 2* PS/2, 1*VGA, 4*USB, 2*LAN, 1*AUDIO,MIC
-
1*PCI Slot, 1 *Mini PCIe slot
-
DC 8-30V input option
-
Standard VESA 75/100mm support stand ,wall mount and swing arm
|
Specifications |
|
TFT Characteristics |
|
Display Type |
22" LED panel
|
Pixel Number |
1680 * 1050 |
|
Pixel Pitch(RGB) |
0.297*0.297 |
Contrast Ratio |
1000: 1 |
|
Light Intensity |
250 cd/m2
|
Viewable Angles |
160°(H) , 160°(V) |
|
MTBF |
50,000hrs. |
Response Time |
7 ms |
|
OS sytem |
Support DOS,Windows,Netware,Unix,Linux |
|
|
|
System Characteristics |
|
Processor |
Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB |
Chipset |
Intel Atom D525 +ICH8M |
|
Memory |
1 * SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. |
Graphic |
Intel GMA3150chipset |
|
Storage |
Space for 1x 2.5" 320G HDD /16G SSD/32G SSD |
Audio |
Realtek®ALC662,5.1 Channel surround Audio |
|
Ethernet |
Two LAN onboard:2x Realtek®RL8111x(Gigabit) 10/100/1000 Ethernet |
Mounting |
Panel/VESA 75x75mm/100x100mm |
|
VGA Port |
1 * VGA (DB-15 Connector) |
Expansive Slot |
1*PCI Slot, 1 *Mini PCIe slot
|
|
Serial Port |
4 * COM( 3*RS232, 1*RS422/485)
|
Speakers |
2*2W
|
|
Contruction |
Aluminum front bazel and aluminum chassis |
Watchdog Timer |
255Levels,1-255sec. |
|
Available Options |
|
Touch Screen |
Resistive,intel USB interface controller |
Wireless LAN/Wifi |
Meet IEEE802.11b/g
standard. |
|
DC Power Input |
standard DC19V (DC8-30V option) |
Speakers |
2 * 2W |
|

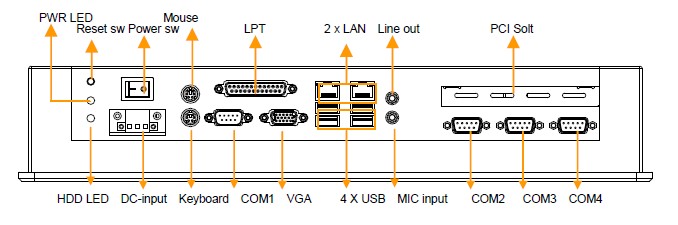

I/O Connector |
|
PS/2 |
1 * PS2 for KB/ Mouse |
Lan |
2 *10/100/1000 MLan port(RJ-45) |
|
VGA |
DB-15 connector |
USB |
4 * USB 2.0 |
|
RS-232 |
4 * COM( 3 * RS232, 1 * RS422/485)
|
Parallel port |
1 * SPP/EPP/ECP port |
|
DC Input |
3Pin DC power input termnal block |
Sound |
Mic-in/line-out |
|
Mechanical and Environmental |
|
Operating temp. |
32°F~125°F ( 0 °C to 50 °C) |
Storage temp. |
-4°F~140°F ( -20 °C to 60 °C)
|
|
Storagehumidity |
10% to 90%non-condensing |
Shock(operating) |
1G/peak (11m sec) |
|
Vibration |
17 to 500Hz 1G PTP |
Front panel protection |
IP65/NEMA 4 compliant
|
|

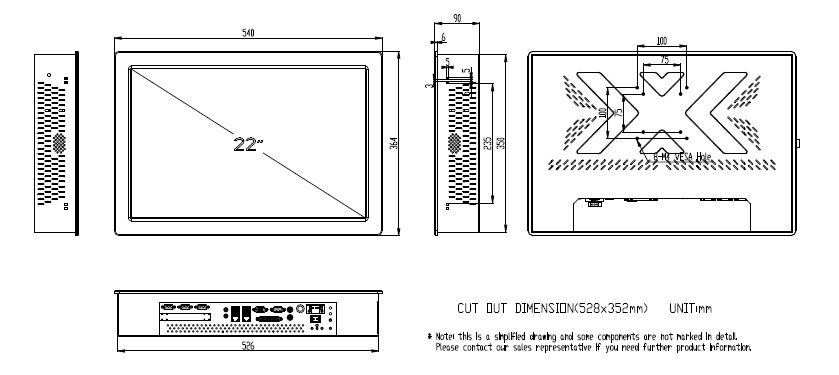

Dimension (WxHxD) |
540 x 364 X 90mm |
Weight |
Net:9.5KG,Volume Gross:14KG |
|
Power Specification |
|
Output rating |
50W |
Input Voltage |
8-30V, "external AC adapter" |
|
Certification
|
CE/ FCC/ RoHS |
|
|
|
Ordering Information |
|
IPPC-220W-2R : 22" WXGA Industrial Panel PC support Intel® Atom D525 Dual‐core 1.8GHz Processor, with 2G/4G RAM, 2.5" 320G HDD/16G SSD, with Resistive Touch Screen,DC12V/DC8‐30V power
IO: 4COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,MIC,1xPCI Slot, 1 xMini PCIe slot
|
|
Optional: |
|
Storage |
16G SSD/32G SSD/8G CF card |
|
Wireless LAN |
Wifi |
|
Power supply |
DC8-30V |
|
Speakers |
2 x 2W |
|
| |
|
 |
| |
|
