Home > products > industrial panel PC > intel atom D525 panel pc
19" panel pc

Clicks:  Date:2013-09-27

Model NO: IPPC-190D-2R



1. Intel Atom D525 ( Dual-core 1.8GHz processor) CPU with 667 MHz FSB
2. Front 6mm aluminum bazel with IP65 compliant
3. 4COM (1*RS485),1*LPT,2*PS/2,1*VGA,4*USB,2*LAN,1*AUDIO,1*MIC
4. 1* PCI ,1*Mini PCIe,1*PCI
5. DC8-30V, Wifi (option)
6. Panel (Flush) mount with clip
7. Standard VESA 75/100mm support stand,wall mount and swing arm

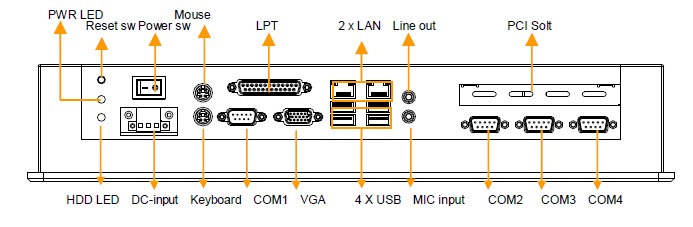

I/O Appearance

TFT Characteristics
Display Type

19" LED panel

Pixel Number

1280 * 1024

Pixel Pitch(RGB)  0.297*0.297 Contrast Ratio

1300: 1



Viewing Angles

170°(H) , 160°(V)

MTBF  50,000hrs. Response Time  6 ms
OS sytem Support DOS,Windows,Netware,Unix,Linux
System Characteristics
Processor Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB Chipset Intel Atom D525 +ICH8M
Memory 1 * SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. Graphic Intel GMA3150 chipset
Storage Space for 1x 2.5" 320G HDD /16G SSD/32G SSD Audio Realtek®ALC662,5.1 Channel surround Audio
Ethernet Two LAN onboard:2x Realtek®RL8111x(Gigabit) 10/100/1000 Ethernet Mounting Panel/VESA 75x75mm/100x100mm
VGA Port 1 * VGA (DB-15 Connector) Expansive Slot

1*PCI Slot, 1 *Mini PCIe slot

Serial Port

4 * COM( 3*RS232, 1*RS422/485)

Speakers 2*2W
Contruction Aluminum front bazel and aluminum chassis Watchdog Timer 255 Levels , 1-255 sec.
Available Options
Touch Screen Resistive,intel USB interface controller Wireless LAN/Wifi Meet IEEE802.11b/g
DC Power Input standard DC19V (DC8-30V option) Speakers 2 * 2W
I/O Connector
PS/2 1 * PS2 for KB/ Mouse Lan 2 *10/100/1000 MLan port(RJ-45)
VGA DB-15 connector USB 4 * USB 2.0

4 * COM( 3 * RS232, 1 * RS422/485)

Parallel port 1 * SPP/EPP/ECP port
DC Input 3Pin DC power input termnal block Sound Mic-in/line-out
Mechanical and Environmental
Operating temp. 32°F~125°F ( 0 °C to 50 °C) Storage temp.

-4°F~140°F ( -20 °C to 60 °C)

Storagehumidity 10% to 90%non-condensing Shoc(operating) 1G/peak (11m sec)
Vibration 17 to 500Hz 1G PTP Front panel protection

IP65/NEMA 4 compliant

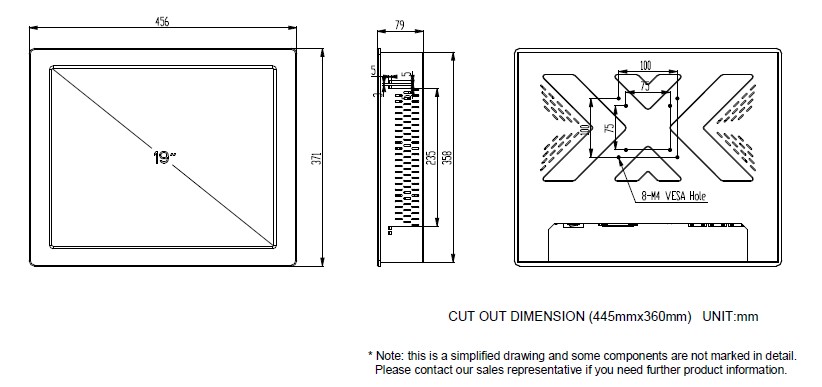

Dimension (WxHxD)

456x 371 x 79mm


Net: 8.5KG , Volume Gross:11 KG

Power Supply

Output rating 48W Input Voltage 8-30V, "external AC adapter"


CE/ FCC/ RoHS


Ordering Information

IPPC-190D-2R      19"  LED Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5"320G HDD,with resistive touchscreen,DC19V power

IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*PCI


MP-MS150NW : Mini-PCIE wireless Lan card with antenna


Storage 16G SSD/32G SSD/64G SSD
Wireless LAN Wifi
Power supply DC8-30V
Speakers 2 * 2W
