5.7" industrial monitor

Clicks:  Date:2012-12-17


Model NO: IPM-057



Features

  • 5.7" SVGA TFT LCD Panel support 640x480 pixels
  • 6mm Aluminum front bezel with strengthen glass
  • Rugged construction and modularized design
  • Input signal : VGA
  • 400 cd/m2 brightness
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • Panel(Flush) mount with bracket
TFT Characteristics
Display Type

5.7" SVGA TFT LCD

Resolution

640 x 480

Pixel Pitch(mm)

0.18(H)x 0.18(V) mm

Contrast Ratio

600 : 1

Light Intensity

400 cd/m2

Viewable Angles(L/R,U/D)

70/70 , 60/60

Max Colors

262K

Display Area

115.2(H)X86.4(V)mm

MTBF

40,000hrs.

Response Time

35 ms

Available Options

Touch Screen

Resistive type with USB and RS232 controller

DC power input

Wide Range 8-30V DC input

Power Specifications

Input

100~240VAC,50/60Hz

Output

DC12V@5A/60W,external AC adapter

Mechanical and Environmental

Construction

Heavy duty steel and aluminum front panel

Dimension (WxHxD)

200x150x57mm

Weight

Net: 3KG, Gross: 4.5KG

Operating temperature

32 °F~113 °F (0 °C to 50 °C)

Storage temperature

-4 °F~140 °F (-20 °C to 60 °C)

Storage humidity

10% to 90%non-condensing

Vibration

17 to 500HZ 1G PTP

Anti-Shock

1G /peak( 11m sec)

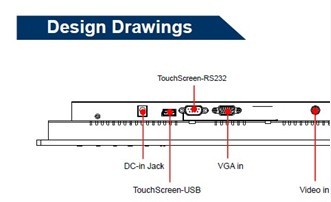

Input Signals

RGB Signal

D-SUB 15p Connector( Female)

DC input

DC jack (2.1mm)

Touch screen RS232 (option)

D-SUB 9p Connector (Female)

Touch screen USB (option

USB-A Type connector (Female)

Certification and Approvals

Certificate & Approvals CE/ RoHS





Ordering Information

VGA input

IPM-057

5.7" Industrial Flat Panel Monitor, with VGA input

IPM-057T/C

5.7" Industrial Flat Panel Monitor, with VGA input ,with Touch screen and RS232 controller

IPM-057T/U

5.7" Industrial Flat Panel Monitor, with VGA input ,with Touch screen and USB controller

DC-DC power

DC8~30V input power module
