10.4" Industrial LCD Monitor VGA+DVI IPM-10

1. 10.4" SVGA TFT LCD Panel support 800x600 pixels
2. 6mm Aluminum front bezel with strengthen glass
3. Rugged construction and modularized design
4. Input signal : VGA +DVI+ Audio
5. 230 cd/m2 brightness
6. OSD control keys to optimize the display
7. AC 100-240V wide range external ac adapter
8. Panel(Flush) mount with bracket
9.NEMA4 / IP 65 compliant front panel

Home
|
Favorites

Related content
22" industrial monitor
19" industrial monitor
17" industrial monitor
15" industrial monitor
12.1" industrial monitor
10.4" industrial monitor
8" industrial monitor
5.7" industrial monitor




Home > products > industrial touchscreen monitor > panel mount monitor
10.4" industrial monitor

Clicks:  Date:2012-12-17

10.410.410.4
  • 10.4
  • 10.4
  • 10.4
TFT Characteristics
Display Type

10.4" SVGA TFT LCD

Resolution

800 x 600

Pixel Pitch(RGB)

0.264x 0.264 mm

Contrast Ratio

500 : 1

Light Intensity

230 cd/m2

Viewable Angles

120°(H) , 100°(V)

Max Colors

16.2M

Response Time

35 ms

MTBF

50,000hrs.





Available Options

Touch Screen

Resistive type with USB and RS232 controller

DC power input

Wide Range 8-30V DC input

AV input

Composite Video/Audio, S-video input

Power Specifications

Input

100~240VAC,50/60Hz

Output

DC12V@5A/60W,external AC adapter

Mechanical and Environmental

Construction

Heavy duty steel and aluminum front panel

Dimension (WxHxD)

305x220x36mm

Weight

Net: 3.5KG, Gross: 5.0KG

Operating temperature

32 °F~113 °F (0 °C to 50 °C)

Storage temperature

-4 °F~140 °F (-20 °C to 60 °C)

Storage humidity

10% to 90%non-condensing

Vibration

17 to 500HZ 1G PTP

Anti-Shock

1G /peak( 11m sec)

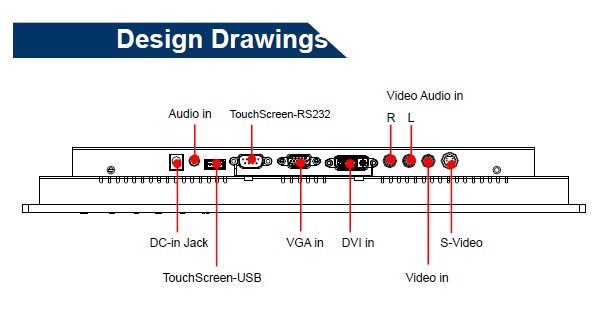

Input Signals

RGB Signal

D-SUB 15p Connector( Female)

DC input

DC jack (2.1mm)

Video Input (option)

RCA Connector

S-Video Signal (option)

S-Video (Svhs) Plug

DVI-D Signal

DVI-D input 24pin connector (Female)

Touch screen RS232 (option)

D-SUB 9p Connector (Female)

Touch screen USB (option

USB-A Type connector (Female)

Certification and Approvals

Certificate & Approvals CE/ RoHS/FCC



Ordering Information

VGA+DVI input

IPM-10

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input

IPM-10T/C

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and RS232 controller

IPM-10T/U

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and USB controller

AV input

IPM-10A

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input

IPM-10AT/C

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and RS232 controller

IPM-10AT/U

10.4" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and USB controller

DC-DC power

DC8~30V input power module



ipm-10t datesheet  269.99 KB
