TFT Characteristics |
|
Display Type |
22" SVGA TFT LCD
|
Resolution
|
1680 x 1050
|
|
Pixel Pitch(RGB)
|
0.282x 0.282 mm
|
Contrast Ratio
|
1000 : 1
|
|
Light Intensity |
250 cd/m2
|
Viewable Angles
|
170°(H) , 160°(V)
|
|
Max Colors |
16.7M
|
Response Time
|
5 ms
|
|
MTBF |
50,000hrs.
|
|
|
|
Available Options
|
|
Touch Screen
|
Resistive type with USB and RS232 controller
|
|
DC power input
|
Wide Range 8-30V DC input
|
|
AV input
|
Composite Video/Audio, S-video input
|
|
Power Specifications
|
|
Input
|
100~240VAC,50/60Hz
|
|
Output
|
DC12V@5A/60W,external AC adapter
|
|
Mechanical and Environmental
|
|
Construction
|
Heavy duty steel and aluminum front panel
|
|
Dimension (WxHxD)
|
|
|
Weight
|
|
|
Operating temperature
|
32 °F~113 °F (0 °C to 50 °C)
|
Storage temperature
|
-4 °F~140 °F (-20 °C to 60 °C)
|
|
Storage humidity
|
10% to 90%non-condensing
|
Vibration
|
17 to 500HZ 1G PTP
|
|
Anti-Shock
|
1G /peak( 11m sec)
|
|

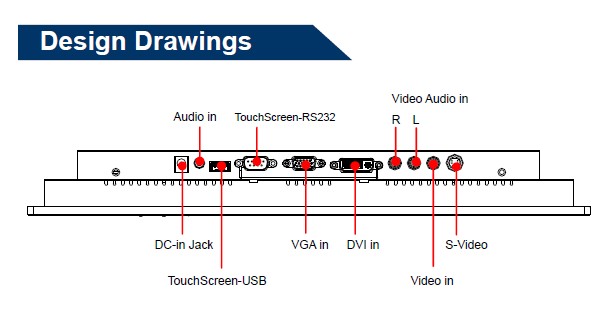

Input Signals
|
|
RGB Signal
|
D-SUB 15p Connector( Female)
|
|
DC input
|
DC jack (2.1mm)
|
|
Video Input (option)
|
RCA Connector
|
|
S-Video Signal (option)
|
S-Video (Svhs) Plug
|
|
DVI-D Signal
|
DVI-D input 24pin connector (Female)
|
|
Touch screen RS232 (option)
|
D-SUB 9p Connector (Female)
|
|
Touch screen USB (option
） |
USB-A Type connector (Female)
|
|
Certification and Approvals
|
|
Certificate & Approvals |
CE/ RoHS |
|
|
